2012/01/31

Oracle Database 11gR2 Installation (Oracle Linux 5.7)


Memory Requirement

Minimum: 1 GB of RAM
Recommended: 2 GB of RAM or more
To determine the RAM size, enter the following command:
# grep MemTotal /proc/meminfo

Available RAMSwap Space Required
Between 1 GB and 2 GB1.5 times the size of the RAM
Between 2 GB and 16 GBEqual to the size of the RAM
More than 16 GB16 GB


# grep SwapTotal /proc/meminfo

Package Requirment


The following or later version of packages for Asianux 3, Oracle Linux 5, and Red Hat Enterprise Linux 5 must be installed:
binutils-2.17.50.0.6
compat-libstdc++-33-3.2.3
compat-libstdc++-33-3.2.3 (32 bit)
elfutils-libelf-0.125
elfutils-libelf-devel-0.125
gcc-4.1.2
gcc-c++-4.1.2
glibc-2.5-24
glibc-2.5-24 (32 bit)
glibc-common-2.5
glibc-devel-2.5
glibc-devel-2.5 (32 bit)
glibc-headers-2.5
ksh-20060214
libaio-0.3.106
libaio-0.3.106 (32 bit)
libaio-devel-0.3.106
libaio-devel-0.3.106 (32 bit)
libgcc-4.1.2
libgcc-4.1.2 (32 bit)
libstdc++-4.1.2
libstdc++-4.1.2 (32 bit)
libstdc++-devel 4.1.2
make-3.81
sysstat-7.0.2

Oracle ODBC Drivers


On Asianux Server 3, Oracle Linux 5, and Red Hat Enterprise Linux 5:


  • unixODBC-2.2.11 (32-bit) or later

  • unixODBC-devel-2.2.11 (64-bit) or later

  • unixODBC-2.2.11 (64-bit) or later

Create Required Operating System Groups and Users


The following local operating system groups and users are required if you are installing Oracle Database:


  • The Oracle Inventory group (typically, oinstall)

  • The OSDBA group (typically, dba)

  • The Oracle software owner (typically, oracle)

  • The OSOPER group (optional. Typically, oper)

To determine whether these groups and users exist, and if necessary, to create them, follow these steps:


  1. To determine whether the oinstall group exists, enter the following command:
    # more /etc/oraInst.loc

    If the output of this command shows the oinstall group name, then the group exists.
    If the oraInst.loc file exists, then the output from this command is similar to the following:
    inventory_loc=/u01/app/oraInventory
inst_group=oinstall

    The inst_group parameter shows the name of the Oracle Inventory group, oinstall.

  2. To determine whether the dba group exists, enter the following command:
    # grep dba /etc/group

    If the output from this commands shows the dba group name, then the group exists.

  3. If necessary, enter the following commands to create the oinstall and dba groups:
    # /usr/sbin/groupadd oinstall
# /usr/sbin/groupadd dba

  4. To determine whether the oracle user exists and belongs to the correct groups, enter the following command:
    # id oracle

    If the oracle user exists, then this command displays information about the groups to which the user belongs. The output should be similar to the following, indicating that oinstall is the primary group and dba is a secondary group:
    uid=440(oracle) gid=200(oinstall) groups=201(dba),202(oper)

  5. If necessary, complete one of the following actions:


    • If the oracle user exists, but its primary group is not oinstall or it is not a member of the dba group, then enter the following command:
      # /usr/sbin/usermod -g oinstall -G dba oracle

    • If the oracle user does not exist, enter the following command to create it:
      # /usr/sbin/useradd -g oinstall -G dba oracle

      This command creates the oracle user and specifies oinstall as the primary group and dba as the secondary group.

  6. Enter the following command to set the password of the oracle user:
    # passwd oracle

Configuring Kernel Parameters


Using any text editor, create or edit the /etc/sysctl.conf file, and add or edit lines similar to the following:
Note:
Include lines only for the kernel parameter values to change. For the semaphore parameters (kernel.sem), you must specify all four values. However, if any of the current values are larger than the minimum value, then specify the larger value.
fs.aio-max-nr = 1048576
fs.file-max = 6815744
kernel.shmall = 2097152
kernel.shmmax = 536870912
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048586

sysctl –p

Check Resource Limits for the Oracle Software Installation Users

If necessary, update the resource limits in the /etc/security/limits.conf configuration file for the installation owner. For example, add the following lines to the /etc/security/limits.conf file:
oracle              soft    nproc   2047
oracle              hard    nproc   16384
oracle              soft    nofile  1024
oracle              hard    nofile  65536
oracle              soft    stack   10240

Creating Required Directories

# mkdir -p /u01/app/
# chown -R oracle:oinstall /u01/app/
# chmod -R 775 /u01/app/



Installation


./runInstaller

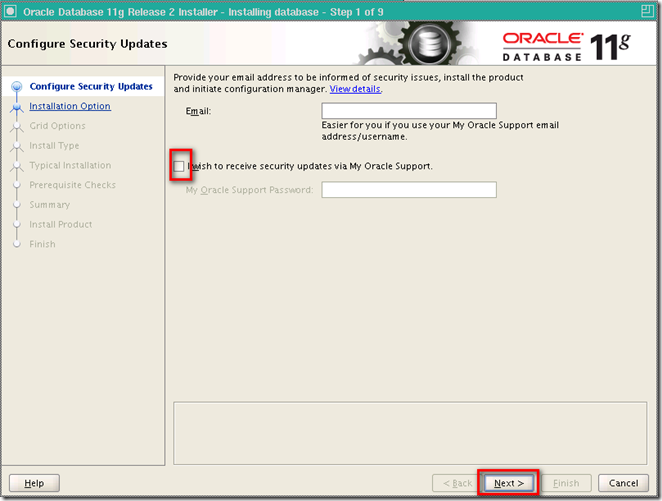

uncheck the checkbox, then Next

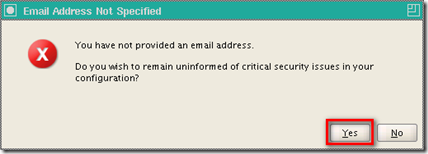

Yes


Create and configure a database, then Next

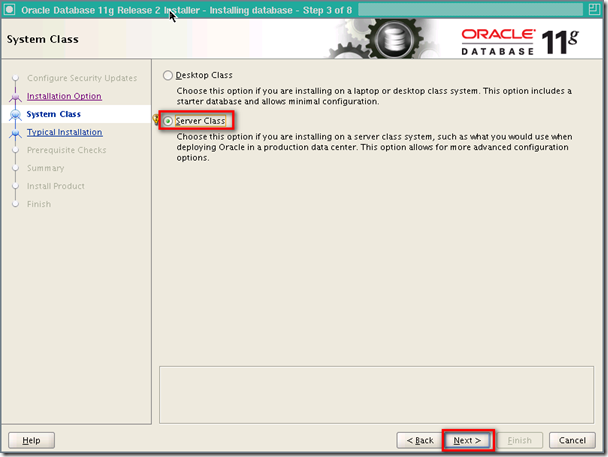

Choose Server Class, then Next




Choose Single instance database installation, then Next


Choose Typical install, then Next


Give Global database name, and Administrative password, note that there are some restrictions about the password, then Next


Give the oracle inventory directory and specify the oraInventory Group Name to oinstall, then Next


This part is weired, I cannot pass it, so I choose Ignore All, then Next

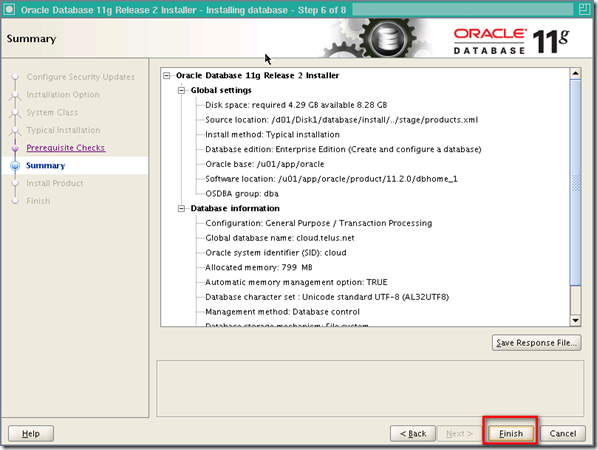

We're ready to install the database software, Finish


dbca is running


to keep use the same administrator password click OK


when the installer prompt you the instruction logon as root and run the script in specified directories

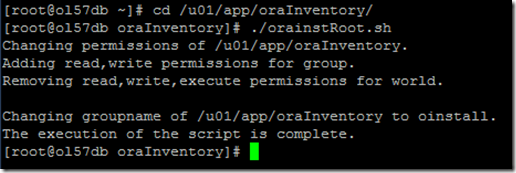

orainstRoot.sh

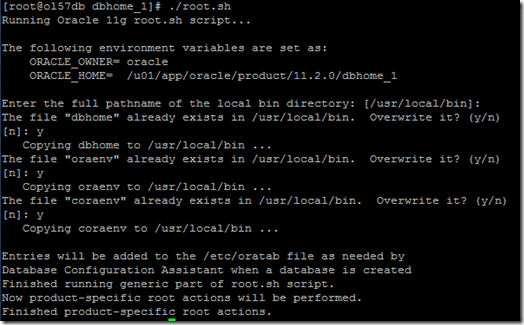

root.sh


The prompt screen, after finish previous two steps, then OK


The database in installed, enterprise manager can be accessed via https://yourhostname:1158/em




Recommended Postinstallation Tasks


Backup root.sh ->  just copy the root.sh to some where else

utlrp.sql ->

. /usr/local/bin/oraenv


sqlplus / as sysdba

@?/rdbms/admin/utlrp.sql


cd $ORACLE_HOME/bin

./genclntst


Reference Oracle Official Document

Appendix


5.2.8 Enabling and Disabling Database Options

When you install Oracle Database, some options are enabled and others are disabled. To enable or disable a particular database feature for an Oracle home, shut down the database and use the chopt tool. See Example 5-1.
The chopt tool is a command-line utility that is located in the ORACLE_HOME/bin directory. The syntax for chopt is:
chopt [ enable | disable] db_option

The possible values for db_option are described in the following table:

































ValueDescription
dmOracle Data Mining RDBMS Files
dvOracle Database Vault
lbacOracle Label Security
olapOracle OLAP
partitioningOracle Partitioning
ratOracle Real Application Testing
ode_netOracle Database Extensions for .NET 1.x
ode_net_2Oracle Database Extensions for .NET 2.0

Example 5-1 Complete Example of Running the Chopt Tool
To enable the Oracle Label Security option in your Oracle binary files, use the following command:
cd %ORACLE_HOME%
srvctl stop database -d myDb
chopt enable lbac
srvctl start database -d myDb
